DragonFish Log Collection

DragonFish Web Log Collection

1. Accessing Web Log Collection Service

Autel Log Manager serves as the initial interface for web log collection. Once you enter this interface, log collection can be completed through simple interface element clicks.

Access Platform	Tool	Address	Log Permissions
Computer connected to base station WIFI	Browser	http://203.0.113.5:11080/Log/WebMenu?clientType=APP	UAV、NEST、FCS
APP Platform	Browser	http://127.0.0.1:11080/Log/WebMenu?clientType=APP	UAV、NEST、FCS、RC、APP

2. Important Notes

1. Only one download task is supported at a time.
2. Log packaging time varies depending on log size. Please wait patiently when the interface shows loading.
3. Connection status should be Aircraft-Base Station-Remote Controller.

3.Log Download

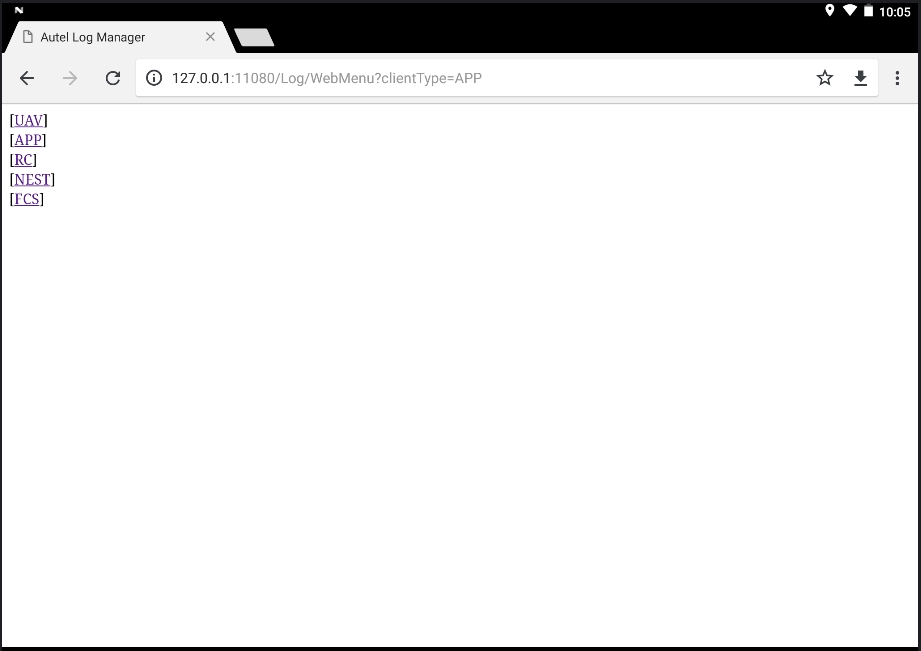

3.1 Log Menu Directory Analysis

For the current DragonFish new architecture, web log collection across all platforms begins by entering the Autel Log Manager interface. Users then follow prompts to navigate pages, locate the packaged log compressed files, and download them. For element functionality during download, please refer to the page navigation tree breakdown.

No.	Abbreviation	Description
1	UAV	Query aircraft logs. Clicking will return the last 15 flight logs saved by the aircraft. The largest sequence number at the bottom of the page represents the current flight. After selecting a flight, you can download logs from either the 1881 (AirTransmission) platform or A810 (AirCamera) platform
2	APP	Query APP platform logs. Clicking will return the last 15 flight logs. After selecting a flight, you can download logs from the 8895 (Rc Android) platform
3	RC	Query remote control transmission platform logs. Clicking will return the last 15 flight logs. After selecting a flight, you can download logs from the 1881 (Nes tAndroid) platform
4	NEST	Query nest/base station transmission platform logs. Clicking will return the last 15 flight logs. After selecting a flight, you can download logs from the 1881 (Nest Android) platform
5	FCS	Query DragonFish flight control logs. Clicking will return the last 15 flight logs. Note that flight control log numbers cycle from 1-30. When a sequence number appears discontinuous with the numbers below it in the list, that flight is the current one. Clicking a selected flight will begin packaging and downloading

3.2 Page Navigation Download Tree Breakdown

|- UAV （Click to jump-Aircraft logs）
        |- 1------timestemp:1732067232643 （Click to jump）
                |- AirTransmission202411190000345.zip------size(mb):382（Click to download- Aircraft 1881 transmission platform）
                |- AirSkylink202411190000345.zip------size(mb):52（Click to download -  Aircraft flight control gateway）
                |- AirCamera202411190000345.zip------size(mb):52（Click to download -  Aircraft A810 camera platform）
        |- 2------timestemp:1732067232644 （Click to jump）
                |- AirTransmission202411190000346.zip------size(mb):920（Click to download-Aircraft 1881 transmission platform）
                |- AirSkylink202411190000346.zip------size(mb):95（Click to download - Aircraft flight control gateway）
                |- AirCamera202411190000346.zip------size(mb):115（Click to download - Aircraft A810 camera platform）
        |- ...
        |- 15------timestemp:1732067232646 （Click to jump）Bottom number is current flight log
|- APP （Click to jump-APP platform logs）
        |- 20------timestemp:1732067232643 （Click to jump）
                |- RcAndroid202411190000345.zip------size(mb):382（Click to download - RC 8895 paltform）
        |- 21------timestemp:1732067232644 （Click to jump）
                |- RcAndroid202411190000348.zip------size(mb):444（Click to download - RC 8895 paltform）
        |- ...
        |- 35------timestemp:1732067232646 （Click to jump） Bottom number is current flight log
|- RC （Click to jump- Remote controller transmission module logs）
        |- 40------timestemp:1732067232645 （Click to jump）
                |- RcTransmission202411190000350.zip------size(mb):12（Click to download - RC 1881 platform）
        |- 41------timestemp:1732067232646 （Click to jump）
                |- RcTransmission202411190000351.zip------size(mb):26（Click to download - RC 1881 platform）
        |- ...
        |- 55------timestemp:1732067232646 （Click to jump） Bottom number is current flight log
|- NEST （Click to jump-Nest/base station transmission module logs）
        |- 60------timestemp:1732067232649 （Click to jump）
                |- NestAndroid202411190000352.zip------size(mb):44（Click to download）
        |- 61------timestemp:1732067232650 （Click to jump）
                |- NestAndroid202411190000353.zip------size(mb):52（Click to download）
        |- ...
        |- 75------timestemp:1732067232650 （Click to jump） Bottom number is current flight log
|- FCS （Click to jump-DragonFish flight control logs）
        |- 1748CJD922081091-sess001 （Click to download）
        |- 1748CJD922081091-sess002 （Click to download）Current flight log, discontinuous with logs below
        |- 1748CJD922081091-sess0019 （Click to download）
        |- ...
